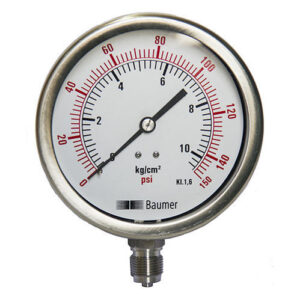

Baumer Pressure Gauges
| Accuracy | 1.6%, 1% |
| Dial Size | 63mm to 250mm |
| Operating Temperature | -20 deg C to +50 deg C |
| Protection | IP65 |
| Shape | Round |

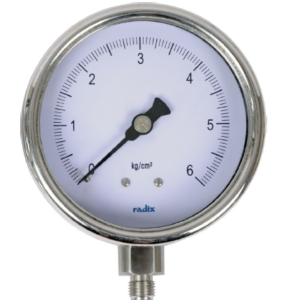

Radix Pressure Gauges
| Accuracy | 1.6%, 1% |
| Dial Size | 63mm to 250mm |
| Operating Temperature | -20 deg C to +50 deg C |
| Protection | IP65 |
| Shape | Round |

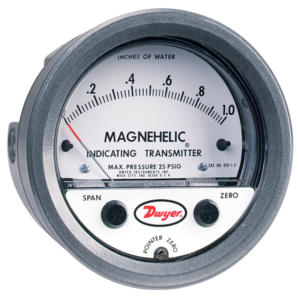

Dwyer Magenehallic gauge
| Mounting | 4-13/16 Hole |
| Output Signal | Bright Led |
| Voltage | 12-24 VDC |
| Max Pressure | 150 PSIG |

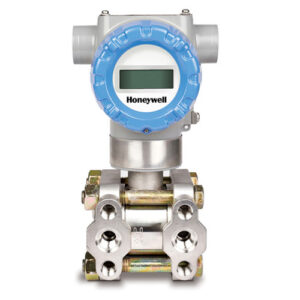

Honeywell Differntial Pressure Transmitter
| Brand | Honeywell |
| Stability | 0.02% of URL |
| Rangeability | 1001 |
| Model Number | STD-700 |
| Accuracies | 0.05% |
| Working Pressure | 4,500 psi, 310 bar |
| Operating Temperature | -20 deg C to +70 deg C |
| Voltage | 10.8 to 42.4Vdc |
| Load | Maximum 1440 ohms |
Jumo Melting Pressure Tarnsmitter
| Brand | Jumo |
| Model Number | PT124B-121 |
| Pressure Range | 0-10MPa, 0-150MPa(0-1500psi, 0-20000psi) |
| Over Pressure | 1.5 X FSO |
| Combined Error | +-1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
| Output | 4-20mA, 0-10V, 0-5V |
| Input Voltage | 24VDC |
| Repeatability | +/- 0.2%FSO |
| Bridge Resistance | Input 345 Ohms minimum |
| Internal Shunt Calibration | 80% FSO +/- 1% |
| Insulation Resistance | 200 megohms @ 100 Vdc |
| Max Diaphragm Temperature | 350 deg C |

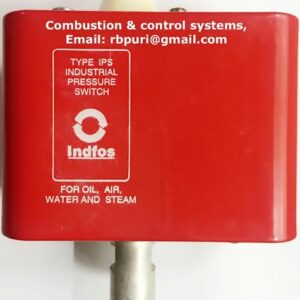

Indfos Pressure Switches
| Brand | Indfos |
| Ambient Temperature | 70 deg C |
| Enclosure | Painted Mild Steel to IP33 as per IS13947 (Part-1), 1993 |
| Process Connection | 3/8″ BSP (M) |
| Process Temperature | 100 deg C max. |
| Sensing Element | Stainless Steel Bellows |
| Switch Rating | AC-1 10A, 230V AC-15 6A, 230V |
| Range | 4.3 to 64 PSI (0.3 to 4.5 atm) |
| Differential | 2.8 PSI (0.2 atm), Fixed |
| Maximum Pressure | 313 PSI (22 atm) |
| Switching | 1 SPDT Microswitch |
| Repeatability and Accuracy | +-2% FSR |
| Mounting | Surface / Panel |
Jumo Pressure Switches
| Weight | 5.6 oz (160 g) |
| Mechanical Working Life | Over 10 6 switching operations. |
| Mounting Orientation | Vertically, with Pressure Connections Pointing Downwards |
| Enclosure Rating | NEMA 13 (IP54). |
| Process Connections | 5/16 ” (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing |
| Temperature | -4 to 185 deg F (-20 to 85 deg C) |

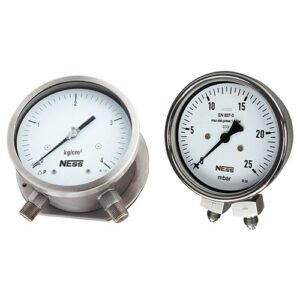

Nesstech Pressure Gauges
| Accuracy | +-1.0% of F.S / +-1.6% of F.S |
| Reference Standard | EN 837-1 / IS 3624 |
| Nominal Dial Size | 100, 125, 150, 250 mm |
| Range | -1 to 1600 kg/cm2 |
| Connection Size | 1/4″ , 3/8″, 1/2″, M20 |
| Enclosure Protection | IP 65 / IP 66 / IP 67 |
Keller Digital Pressure Gauges
| Connection | 1/4″ NPT Male, 316 Stainless Steel |
| Accuracy | +-0.25% full scale (BFSL); +-0.5% terminal point +-1 digit |
| Weight | 0.88 lb. |
| Storage Temperature | -4 deg F to 158 deg F (-20 deg C to 70 deg C) |
| Pressure Ranges | 0 psig to 72 psig through 0 psig to 10,100 psig Compound ranges available |
| Operating Ambient Temperature | 14 deg F to 140 deg F (-10 deg C to 60 deg C) |
| Response Time | 200 ms |
| Environmental Rating | IP65 |
| Power Requirement | 2 x 1.5V “AA” battery 4,000 hrs (“AA” 2000 mAh) |
| Case | Stainless Steel |

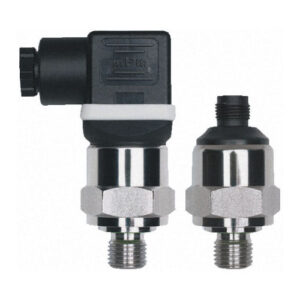

Radix Pressure Transmitter
| Brand | Radix |
| Electrical Connection | DIN 43650 Connector |
| Ip Rating | IP65/ IP67 |
| Process Connection | G1/4 |
| Maximum Pressure Reading | 60bar |
| Housing Material | Stainless Steel |
| Minimum Pressure Reading | 0bar |
| Supply Voltage | 10 – 30 V dc |
| Minimum Operating Temperature | -20 deg C |
| Maximum Operating Temperature | +125 deg C |
| Analogue Output | 4 – 20 mA |
Jumo Pressure Transmitter
| Brand | Jumo |
| Electrical Connection | DIN 43650 Connector |
| Ip Rating | IP65/ IP67 |
| Process Connection | G1/4 |
| Maximum Pressure Reading | 60bar |
| Housing Material | Stainless Steel |
| Minimum Pressure Reading | 0bar |
| Supply Voltage | 10 – 30 V dc |
| Minimum Operating Temperature | -20 deg C |
| Maximum Operating Temperature | +125 deg C |
| Analogue Output | 4 – 20 mA |
Radix Pressure Transmitter Fix Type
| Accuracy | +-0.15 %,+-0.25 % BFSL |
| IP Rating | IP65 |
| Housing Material | 300 Series Stainless Steel |
| Weight | 158 g [5.6 oz] (1/4 BSP port with DIN 43650) |
| Shock | 100 g peak [11 ms] |
| Vibration | MIL-STD-810C,Figure 514.2-5,Curve AK,Table 514.2-V,Random Vibration Test [overall g rms = 20.7 |
| Operating and Storage Temperature Range | -40 deg C to 125 deg C [-40 deg F to 257 deg F] |
Jumo Pressure Transmitter Fix Type
| Accuracy | +-0.15 %,+-0.25 % BFSL |
| IP Rating | IP65 |
| Housing Material | 300 Series Stainless Steel |
| Weight | 158 g [5.6 oz] (1/4 BSP port with DIN 43650) |
| Shock | 100 g peak [11 ms] |
| Vibration | MIL-STD-810C,Figure 514.2-5,Curve AK,Table 514.2-V,Random Vibration Test [overall g rms = 20.7 |
| Operating and Storage Temperature Range | -40 deg C to 125 deg C [-40 deg F to 257 deg F] |
Radix DP Transmitter
| Usage/Application | Pressure, Level , FlowMeasurement |
| Output Voltage | 2 Wire, 4 – 20 mADc |
| Accuracy | 0.075% |
| Brand | Siemens |
| Model Number/Name | 7MF4433 |
| Features | Smart with Heart Protocol |
